Grease separator EasyClean free
KESSEL Grease separator EasyClean free, disposal, nominal size 0,7, temperature controlled enclosure unterhalb eines Spülbeckens, keine metallischen Bauteile im Abscheider, total volume 33 l, Integrated sludge trap
- Swivel Connection
- No Internal Metalic Components In The Separator

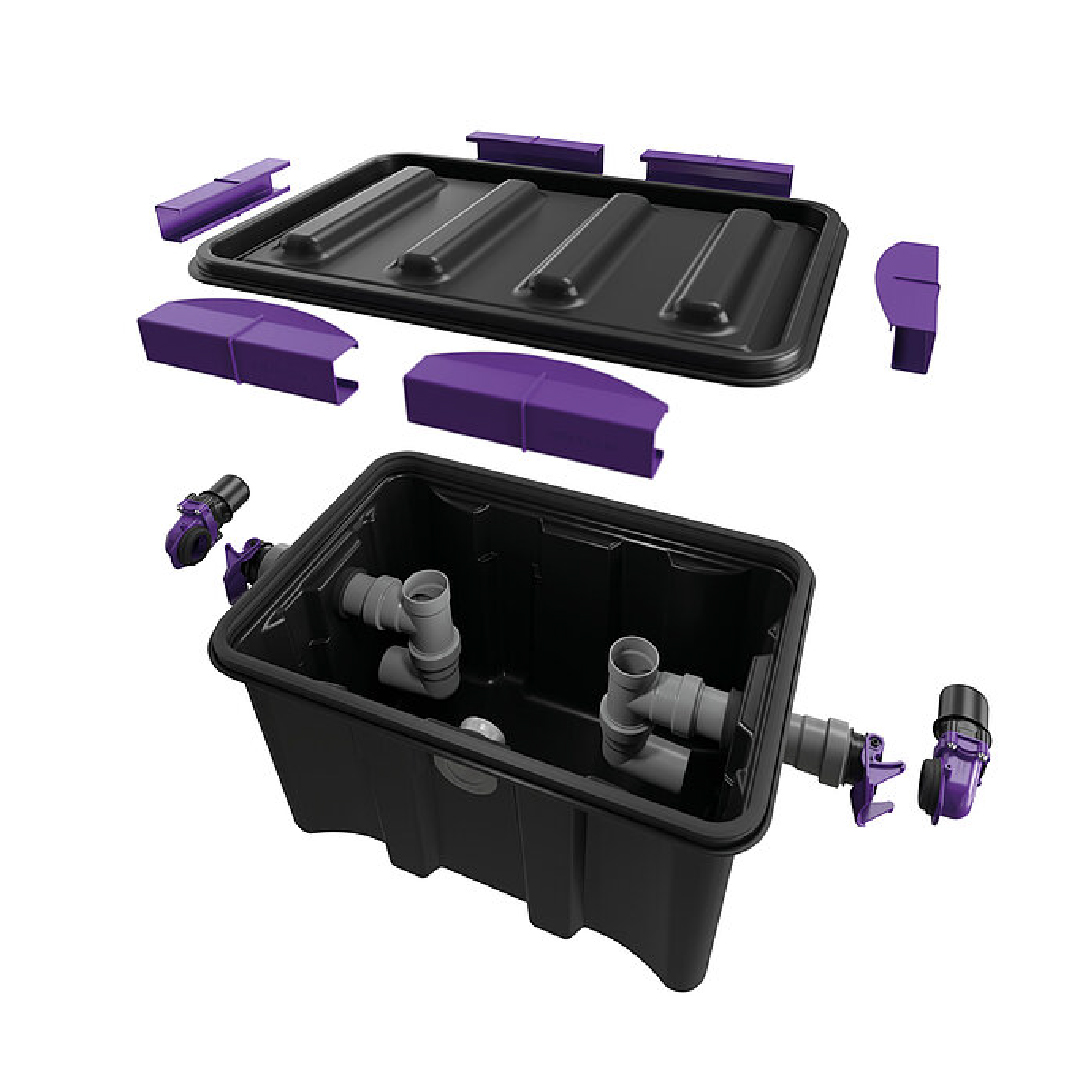

Grease separator EasyClean free UnderSink, NS 0,7
This separator for greasy waste water is suitable for freestanding installation in frost-protected rooms below a sink. Free of any metal components, the collecting tank is made of durable plastic (PP) equipped with an integrated sludge trap. An odor-tight lid with a wrap-around seal and closure clip allows easy access during manual emptying and cleaning. The separator also has quick-release pipe connections for easy removal, and an inspection window for on-site installation is available as an option for visually checking the thickness of the grease layer.
Variant
Seal: yes
Inspection window: no
Nominal size (NS): 0,7
Refill inlet in accordance with DIN 1988: no
Type of disposal: manual
Sampling device: no
General characteristics
Material: PP
Installation situation: free-standing installation
Delivery state: Modular set for assembly on site
Dimensions
Net weight: 5,9 kg
Gross weight: 5,9 kg
Operating weight: 38 kg
Empty weight: 5 kg
Set-up area, length: 891 mm
Set-up area, width: 420 mm
Set-up area, height: 356 mm
Required access area, length: 624 mm
Packaging dimension: length: 624 mm
Packaging dimension: width: 396 mm
Packaging dimension: height: 420 mm
Tank/drain body
Distance pipe bottom outlet to tank bottom: 225 mm
Distance pipe bottom inlet to tank bottom: 235 mm
Outlet nominal size (OD): 50 mm
Outlet nominal size (DN): 50
Inlet nominal size (OD): 50 mm
Inlet nominal size (DN): 50
Coverage features
Locking: Clip closure
Wastewater contents
Separator contents: 21 l
Max. grease layer thickness: 57 mm
Total volume: 33 l
Contents of sludge trap: 12 l
Storage quantity of grease: 8 l
